Data intake
Gerber or ODB++, drill data, fabrication notes, stack-up and quantity are checked for completeness.
Factory & manufacturing process
See how an RFQ becomes a production plan.
Process routes vary by board construction. This page shows the review and manufacturing stages that may apply, together with clearly labeled company-supplied photographs and representative product visuals.
Manufacturing route
The route starts with the actual data.
No single process flow applies to every board. Layer count, material, via structure, copper, impedance, surface finish, testing and volume determine which stages and controls are required.
CAM and DFM
Manufacturability, copper distribution, drill relationships and required tolerances are reviewed.
Stack-up and material
Construction, laminate, copper, finished thickness and controlled features are aligned.
Inner-layer processing
Imaging, etching and inner-layer inspection are routed according to the construction.
Lamination
Layer build, material behavior and sequential requirements are controlled for the agreed route.
Drilling or laser processing
Mechanical holes, microvias and related preparation are selected from the released data.
Plating and outer layers
Hole-wall and pattern formation controls are applied for the specified copper construction.
Solder mask and finish
Mask, legend and surface finish are produced to the fabrication specification.
Test and inspection
Electrical test and any specified impedance, microsection or other verification are completed.
Release and packing
Final inspection, project records and packing requirements are checked before shipment.
Company-supplied on-site video
Factory in motion.
Three short, silent clips show the production environment, automated panel handling and inspection workstations. They are presented as on-site visual evidence; equipment model, quantity and process scope are confirmed separately during technical review.
Enclosed panel-processing equipment and operators loading panels in a controlled-light area.
Company-supplied on-site video · silent footageA robotic arm transfers PCB panels across a protected roller bed between process steps.
Company-supplied on-site video · silent footageOperators review PCB panels at computer-assisted inspection stations and dedicated workstations.
Company-supplied on-site video · silent footageCompany-supplied photographs
Factory imagery, labeled by source.
These photographs were supplied with the website project as factory imagery. Equipment model, count and calibration records are confirmed separately during technical or supplier review.

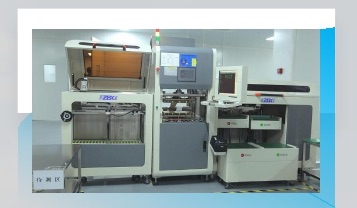

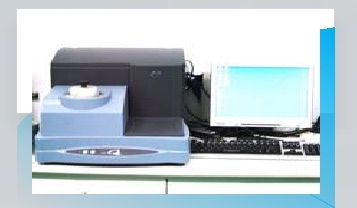

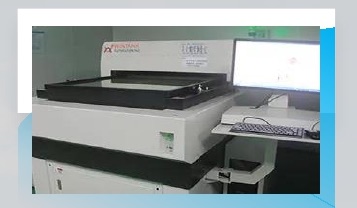

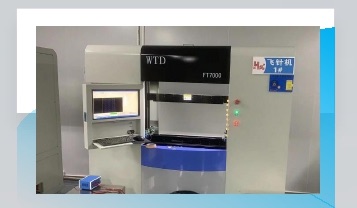

Inspection and test evidence
Cropped from the supplied company profile; model, quantity and calibration status are confirmed during supplier review.
Representative board constructions
Visuals for orientation—not production evidence.

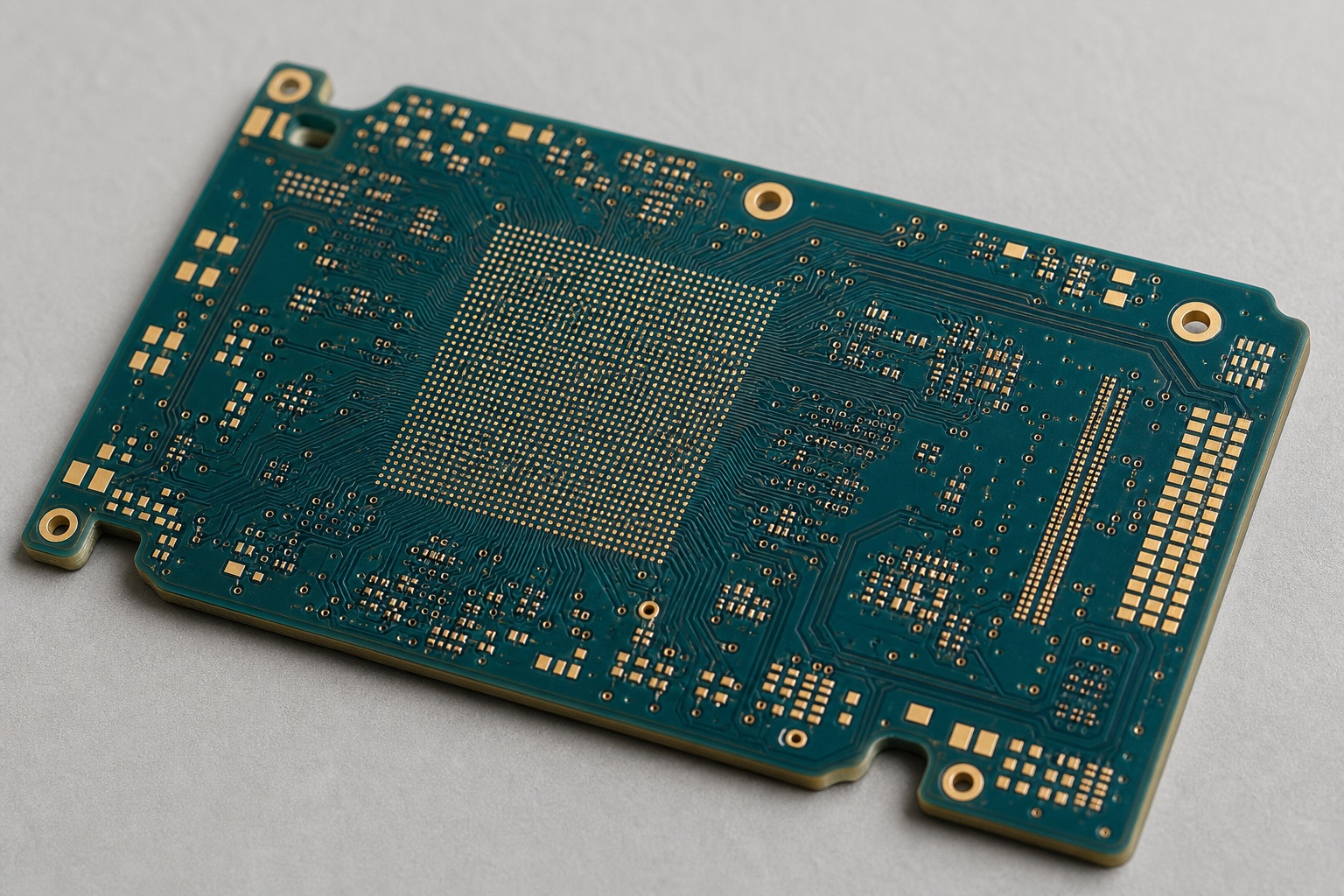

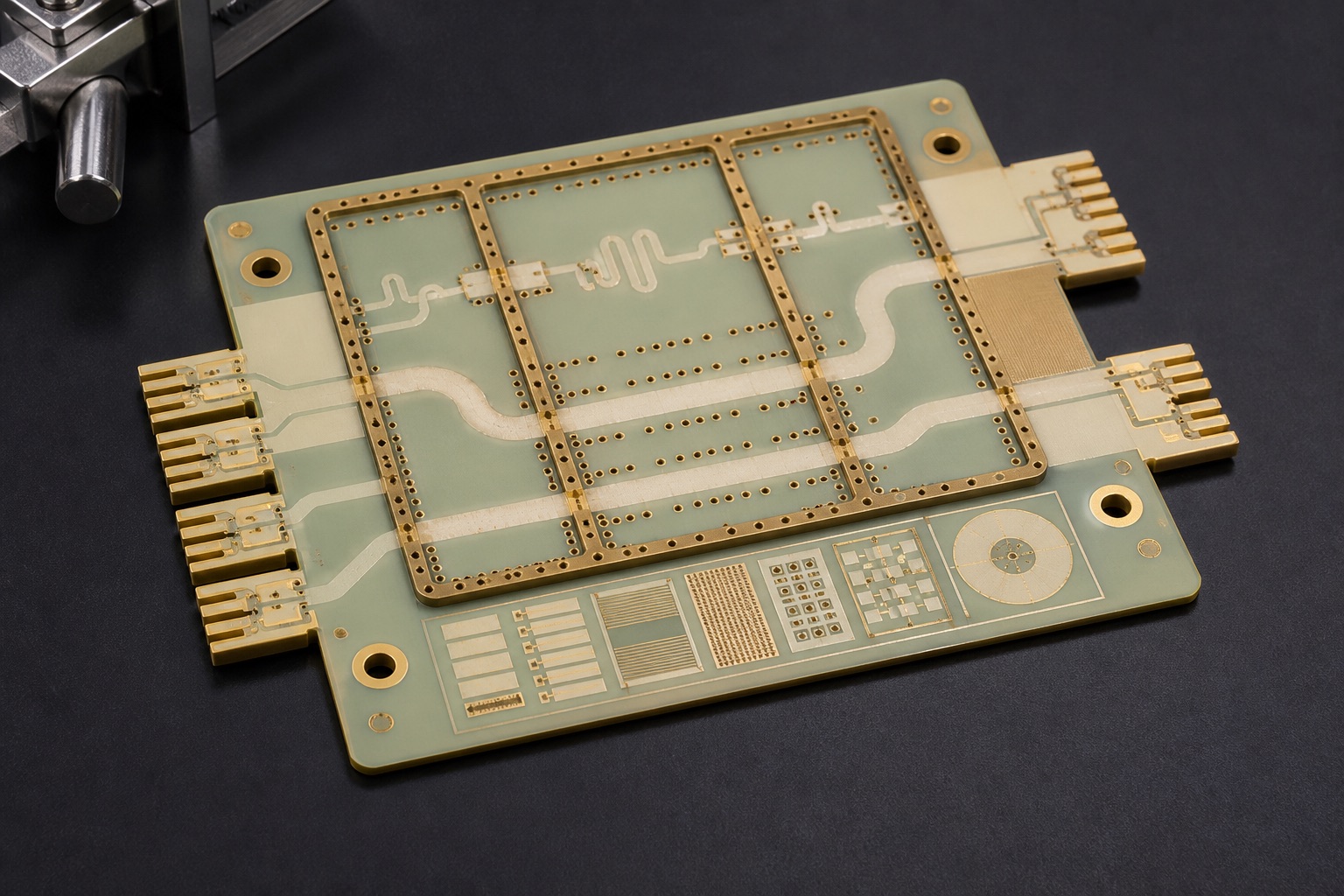

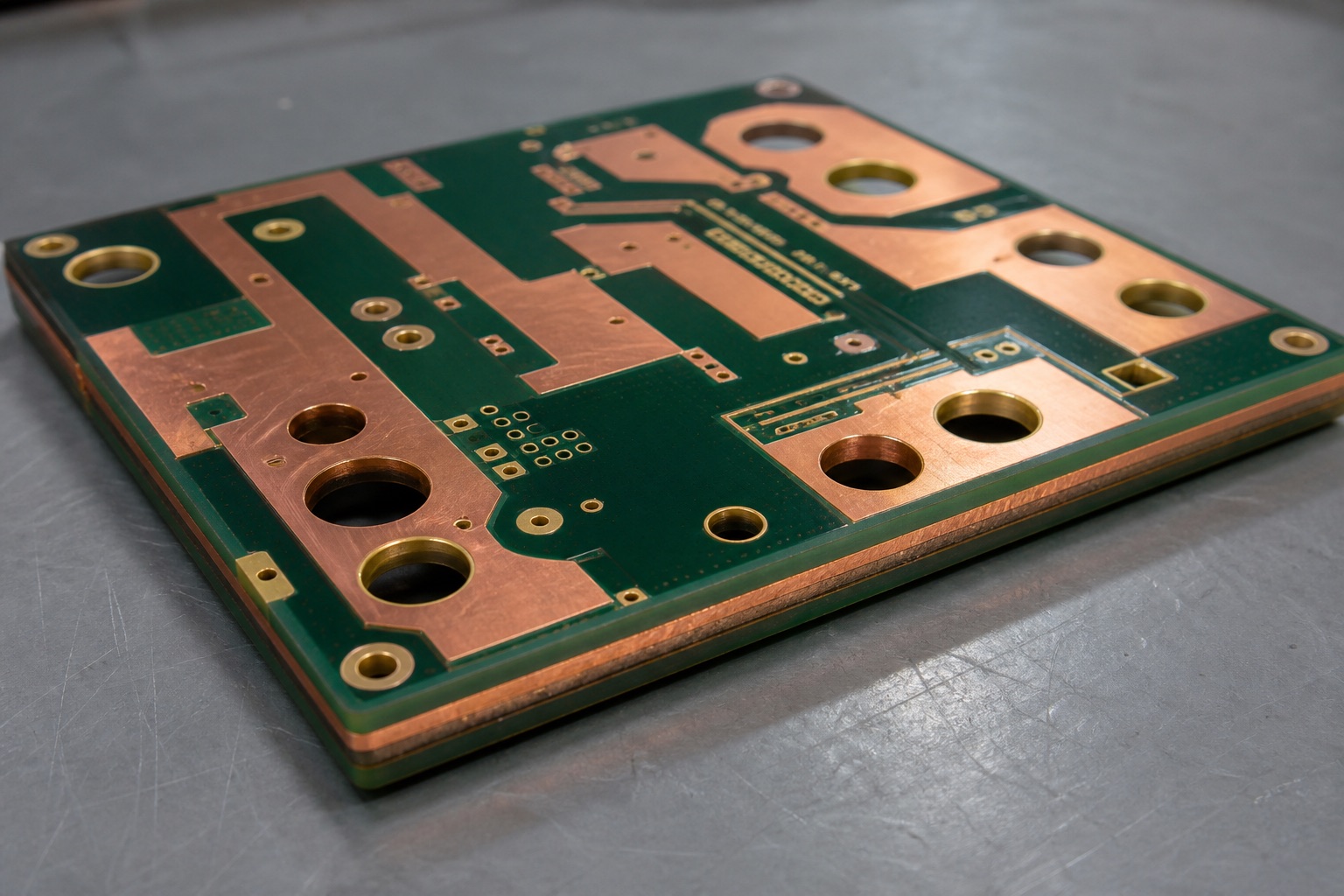

The following AI-generated product visuals help explain three technology paths. They are not customer boards, factory photographs, inspection evidence or claims of completed production.
